FLOWSERVE 080037-IP

SKU: 7043

Em Estoque

Usado
Obtido de ambiente de trabalho

Excl. IVA: €200,00 (5 disponível)

Incl. IVA: €242,00

Refurbished

Excl. IVA: €250,00 (1 disponível)

Incl. IVA: €302,50

Prices exclude VAT. Contact us for bulk pricing or custom configurations.

Importante: All warranties are our own warranties and do not cover factory or manufacturer warranties.

Períodos de Garantia por Condição

Novo 12 meses

Recondicionado 6 meses

Usado DOA

We are not an authorized distributor, representative, or affiliate of any manufacturer or brand listed on this website

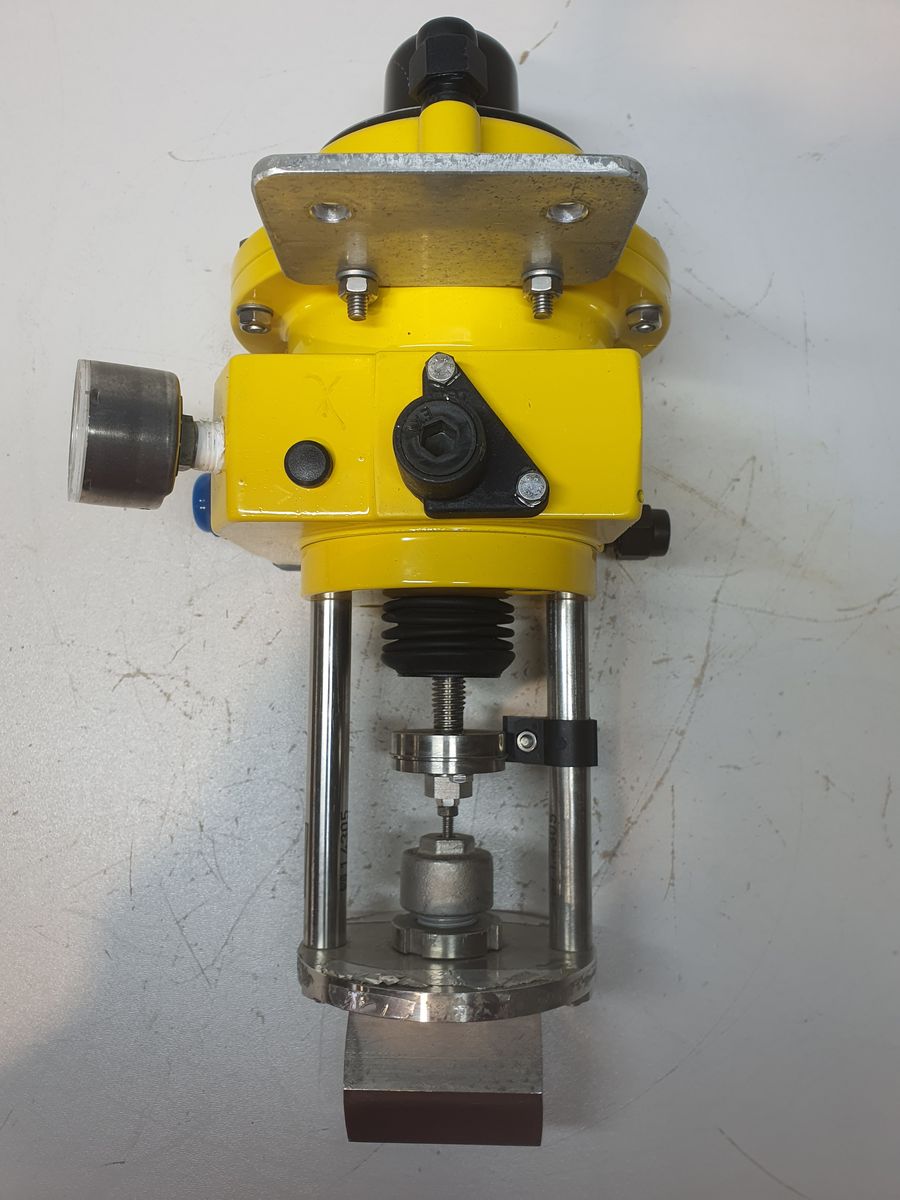

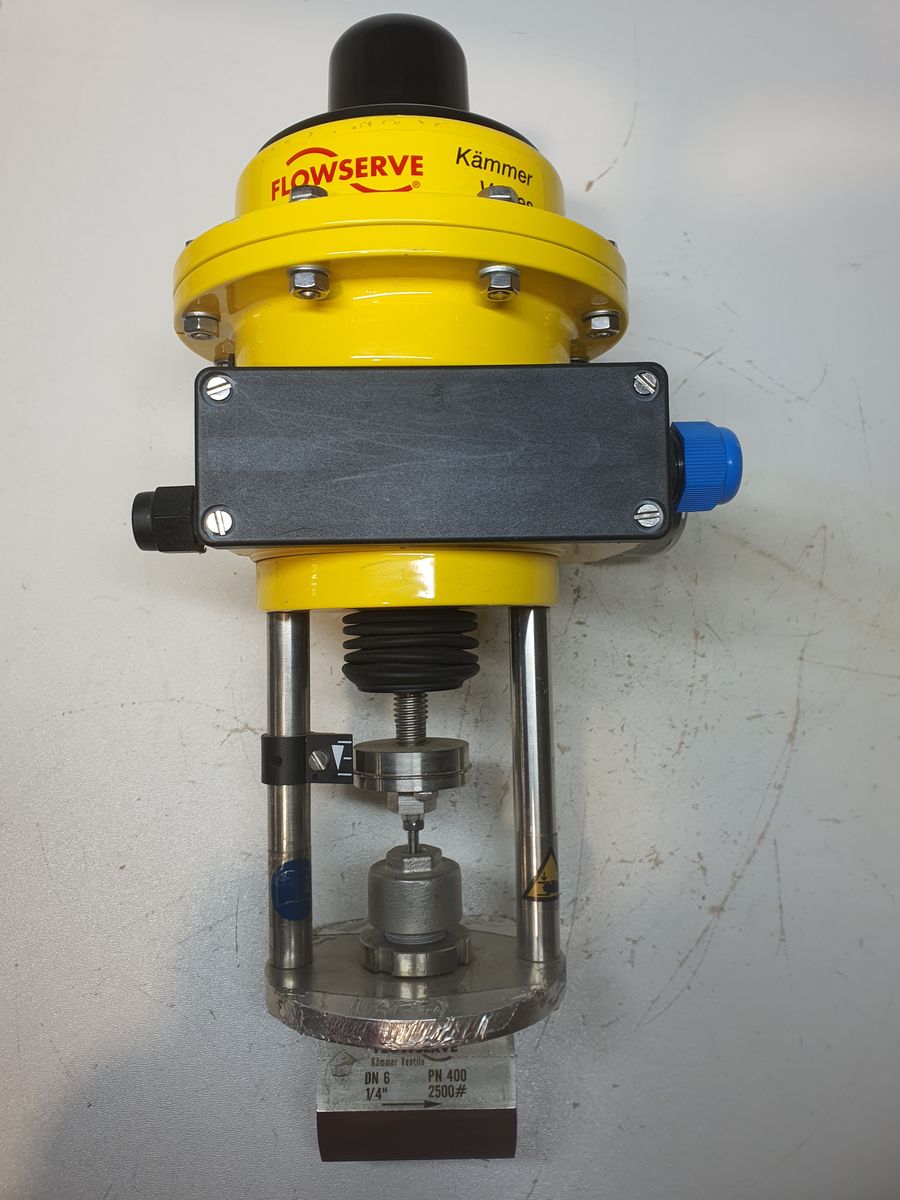

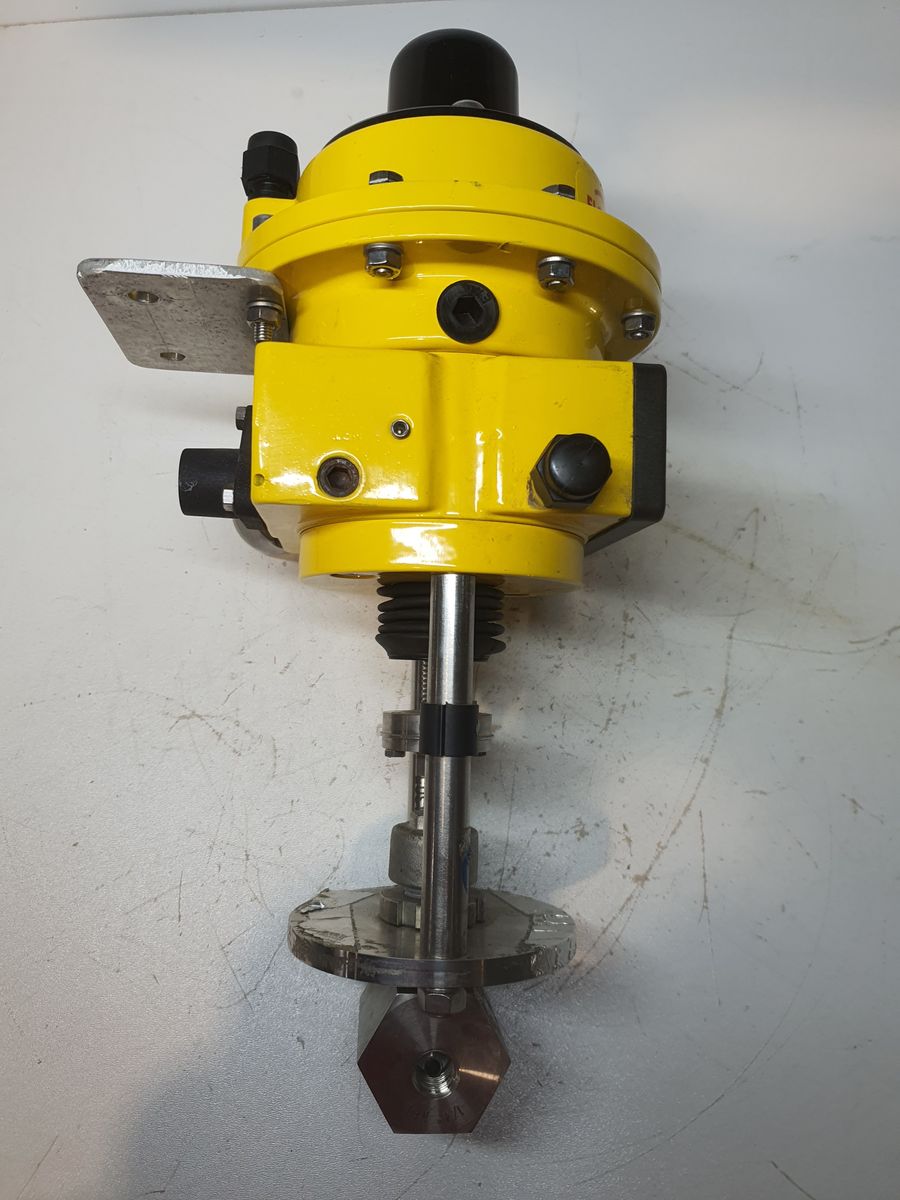

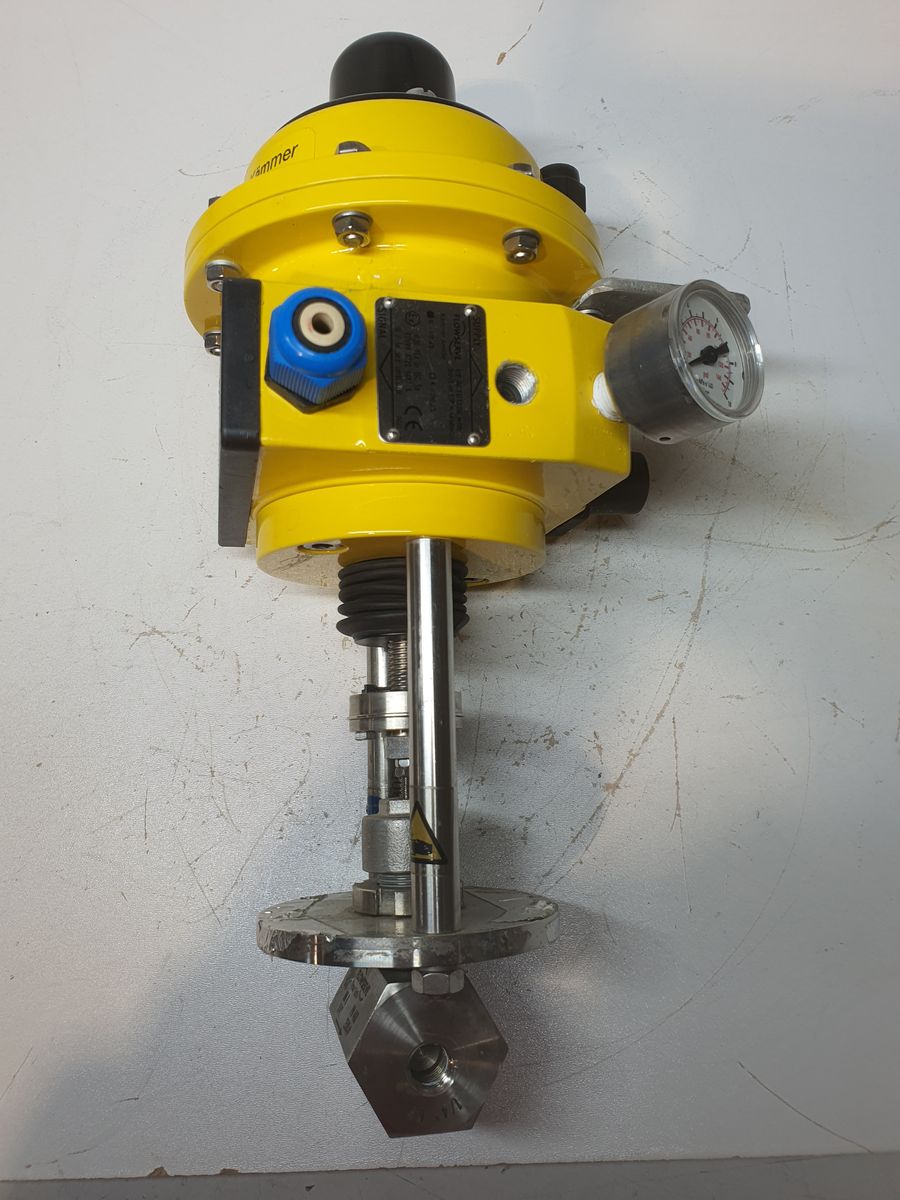

Control Valve by FLOWSERVE

Parameter	Specification
Manufacturer	Flowserve
Model	080037-IP
Valve Type	Control Valve (Micro-flow / Globe type)
Nominal Size	1/4" (DN 8 approx.)
Pressure Rating	Class 2500 (≈ PN 420)
Stroke	10 mm
Control Signal	4–20 mA

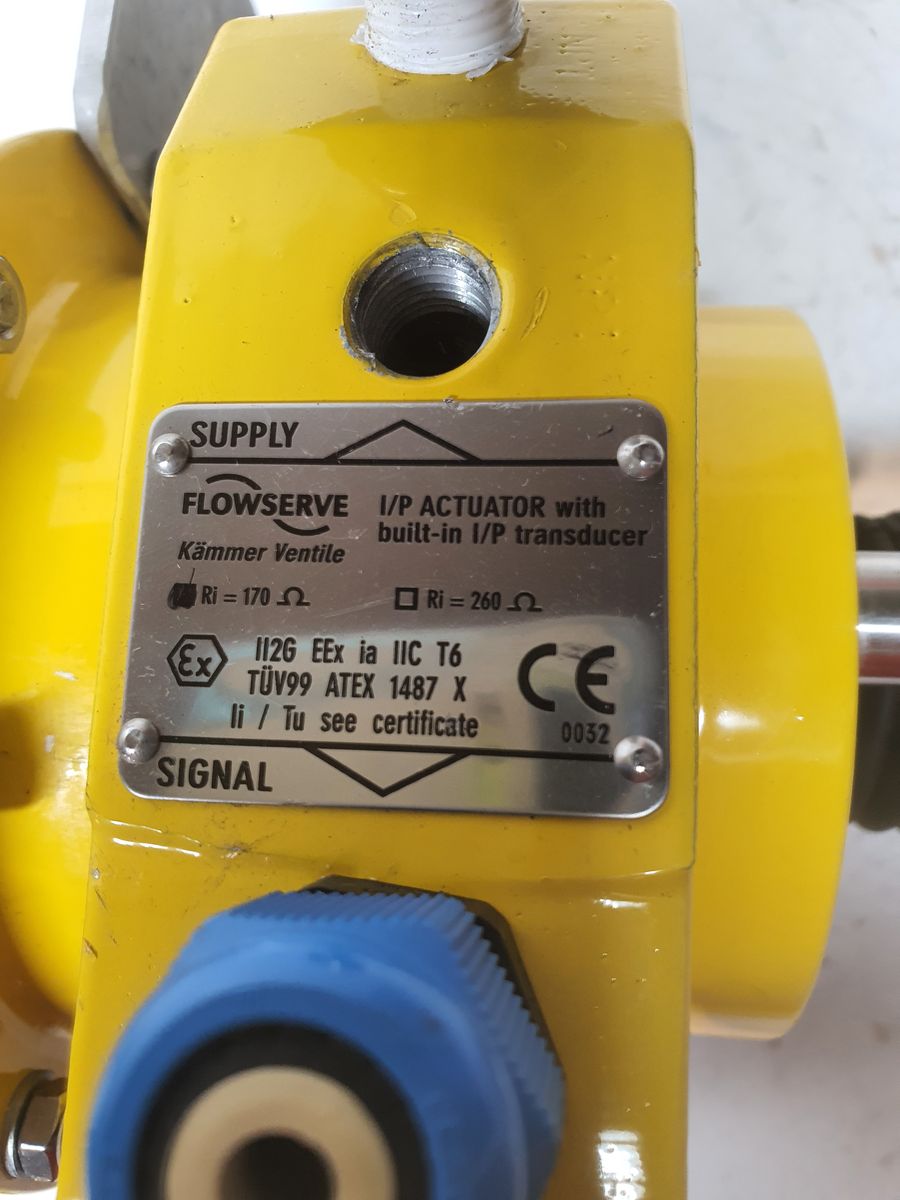

Actuation Type	Electro-pneumatic (I/P positioner)

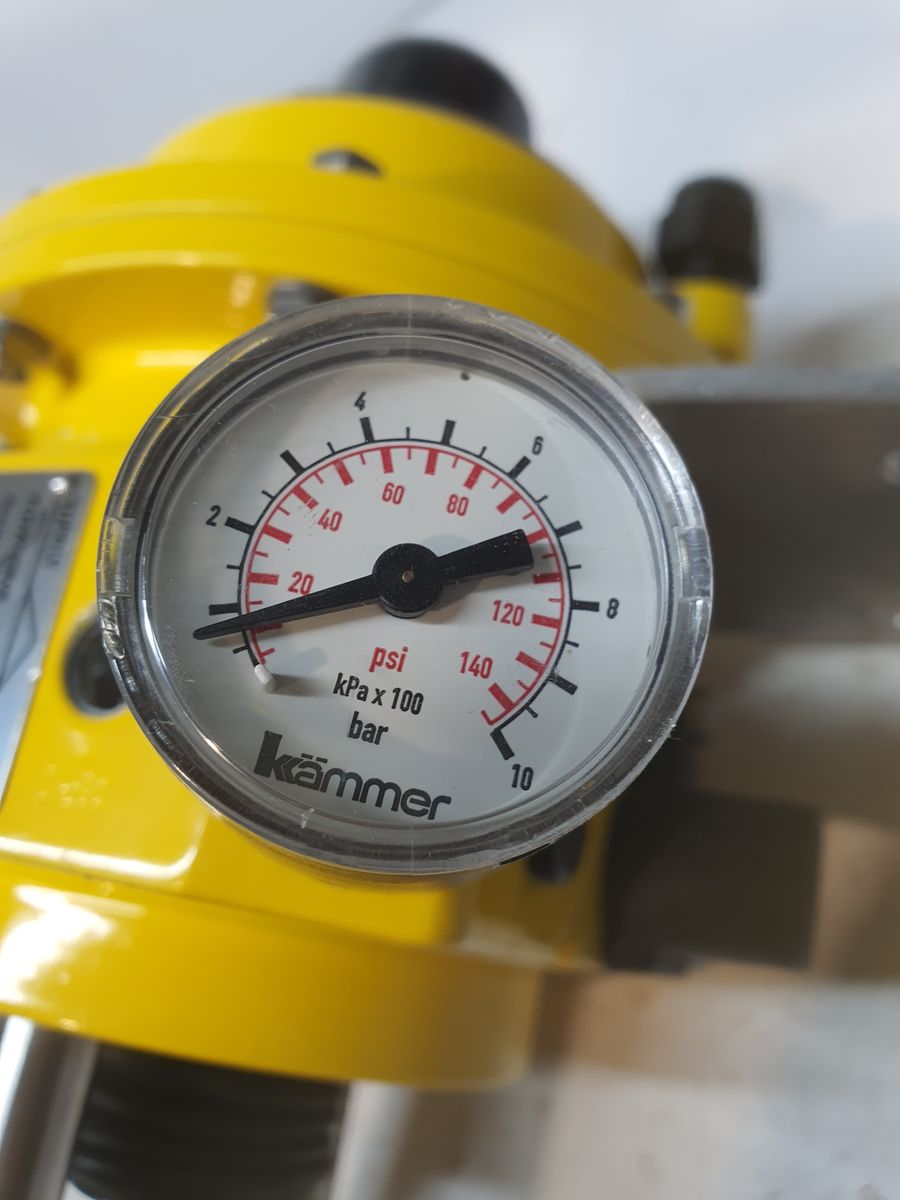

Supply Pressure	2.4 bar
Spring Range	1.0 – 2.2 bar
Flow Coefficient (Kv)	0.0025
Flow Characteristic	Linear / Micro-flow (very fine control)
Valve Plug Material	Alloy 6 (Stellite)
Seat Ring Material	1.4122 (AISI 420 Stainless Steel)
Service Type	High-pressure, low-flow applications
Typical Applications	Chemical dosing, sampling, instrumentation
Status	Discontinued model
